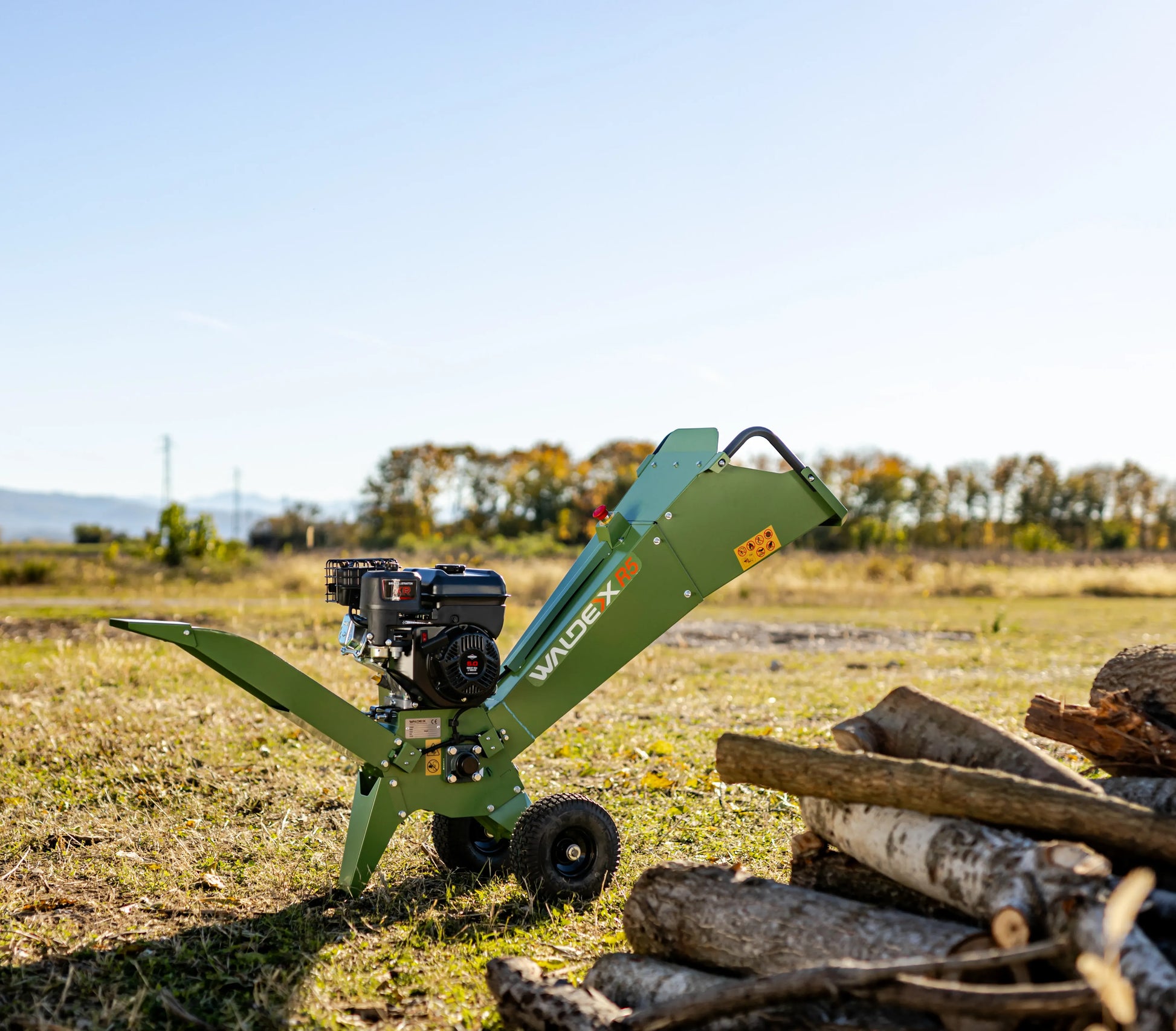

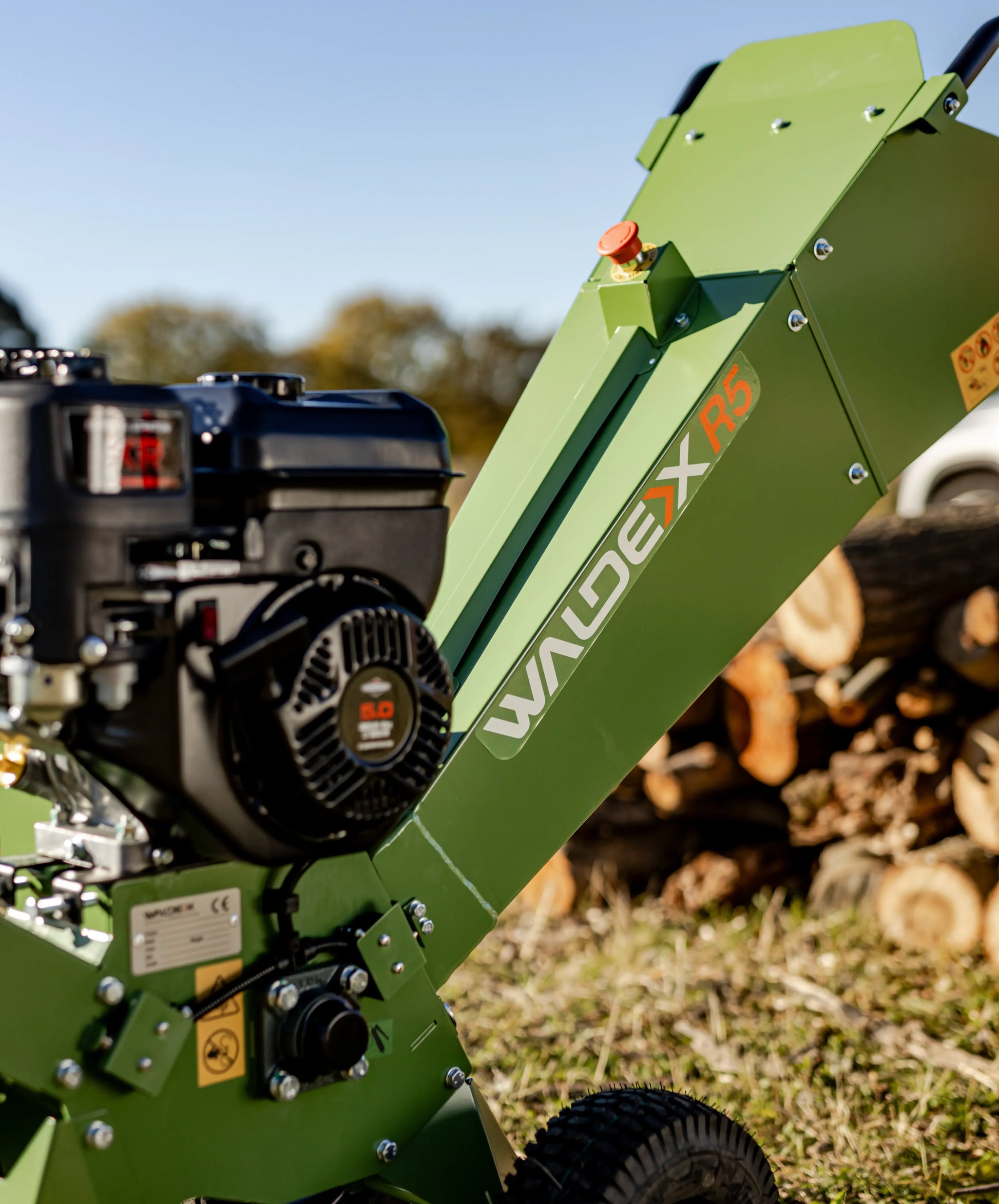

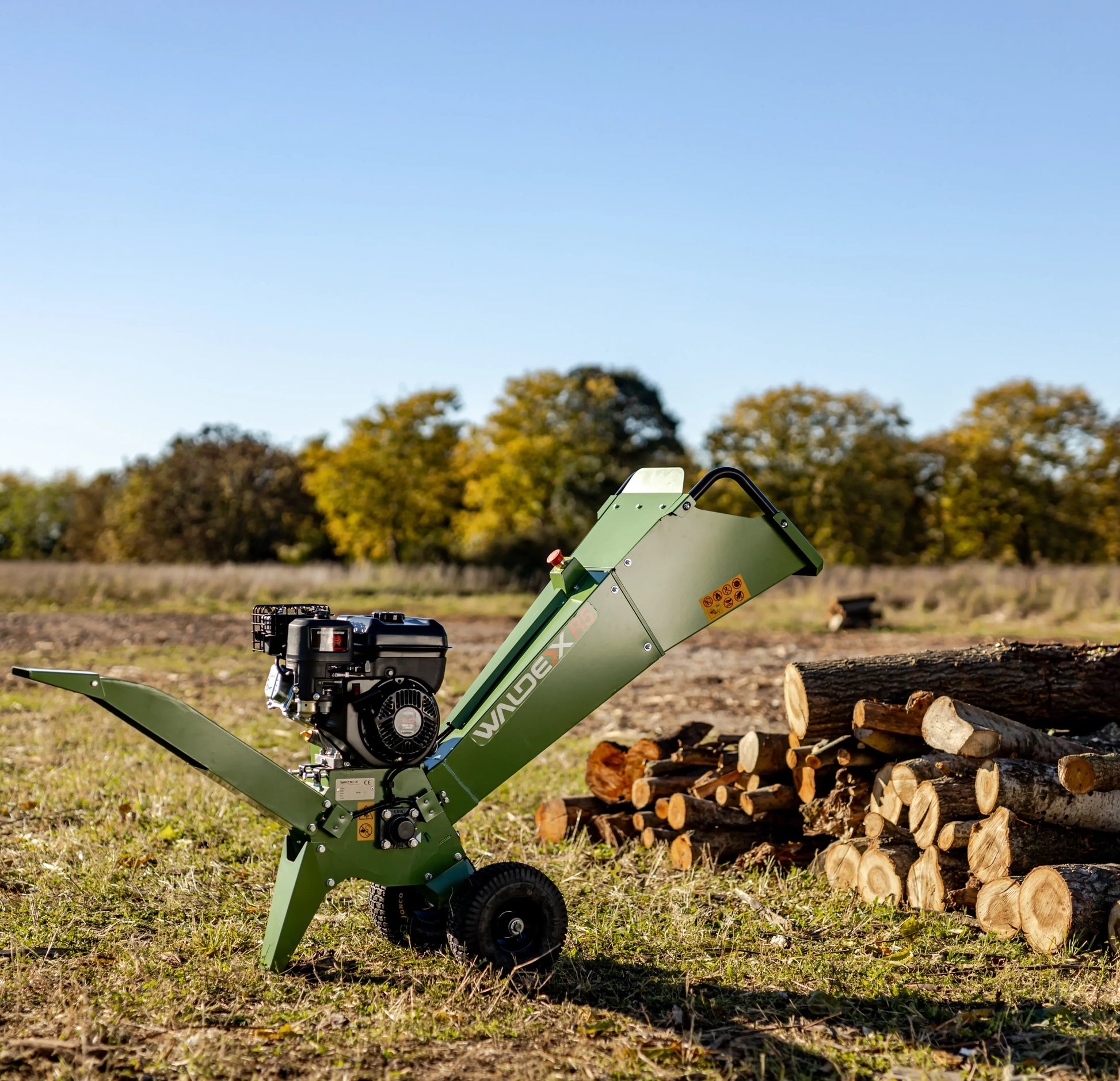

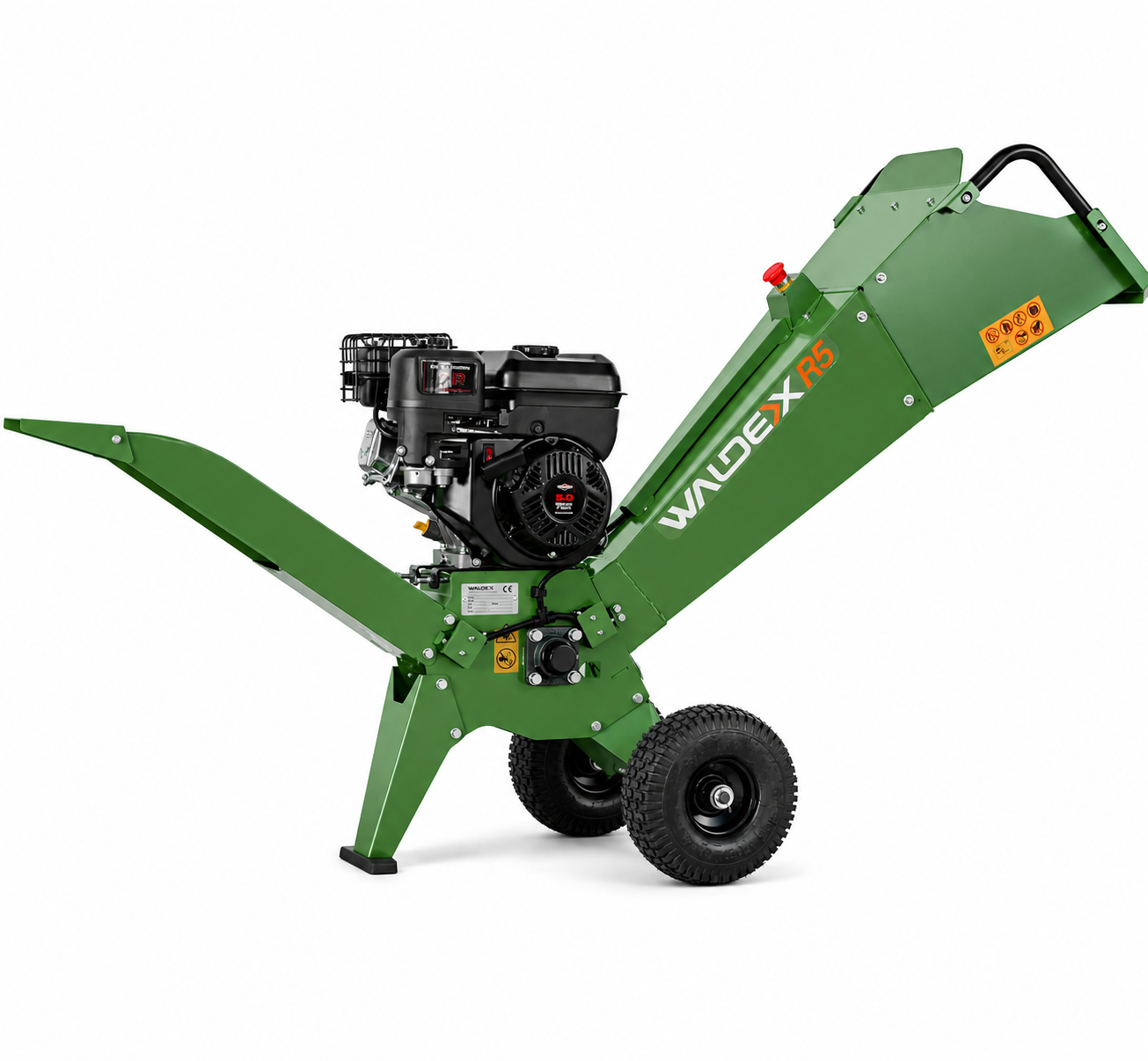

WALDEX R5

Compact Drum Wood Chipper

Compact. Efficient. Easy to Use.

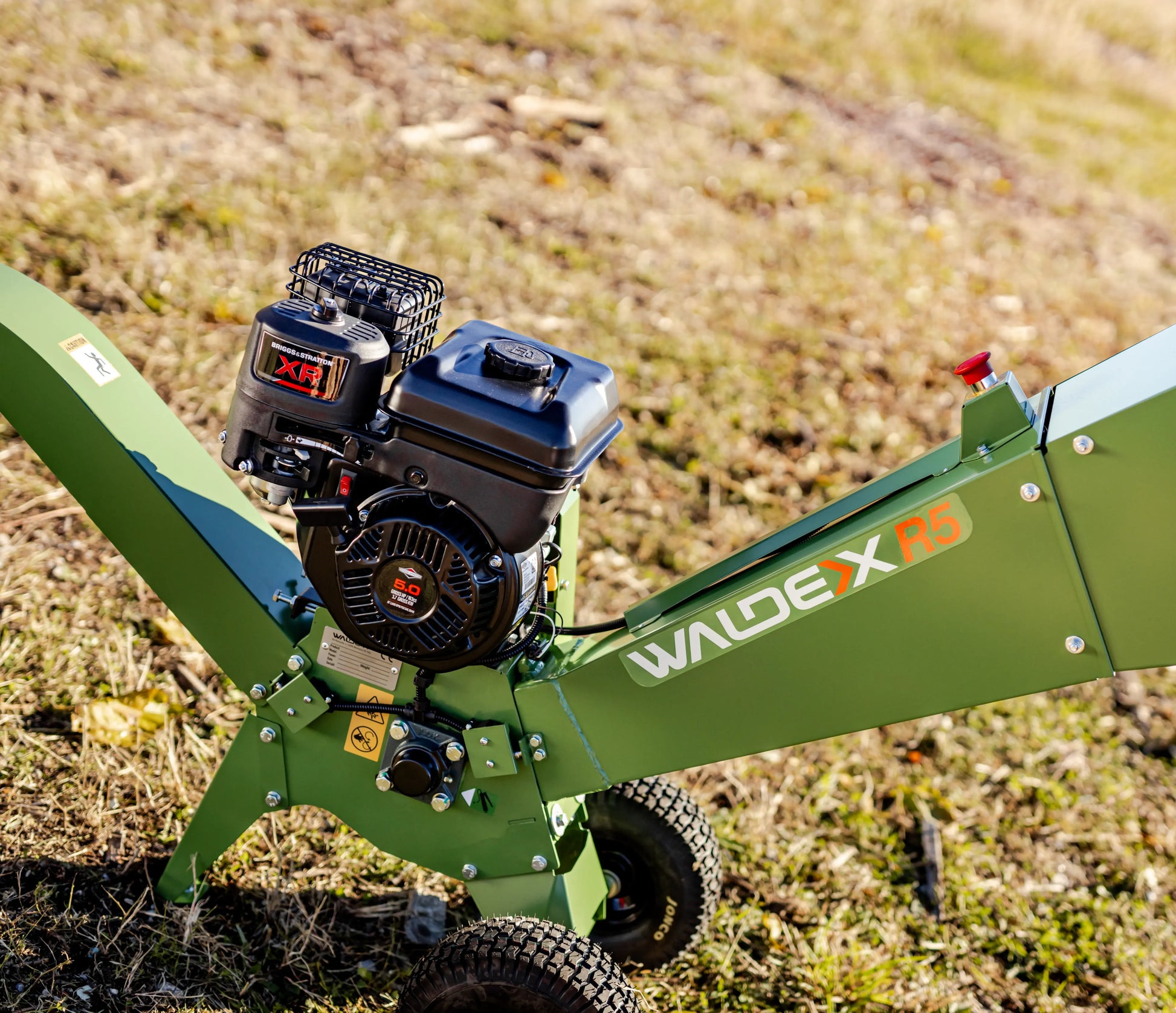

The WALDEX R5 is a compact drum wood chipper designed for efficient processing of branches, twigs, and garden waste. Powered by a reliable single-cylinder gasoline engine, the machine delivers 6 HP at 3600 rpm.

With a maximum branch diameter of 50 mm and an output capacity of 2–3 m³ per hour, the WALDEX R5 is ideal for regular garden maintenance and controlled green waste management.

Efficient Drum Chipping System

The WALDEX R5 is equipped with a durable drum system with a working width of 105 mm.

• 2 reversible hardened steel blades

• Clean and consistent chip quality

• Long blade service life

• Smooth material intake

• Reliable and controlled operation

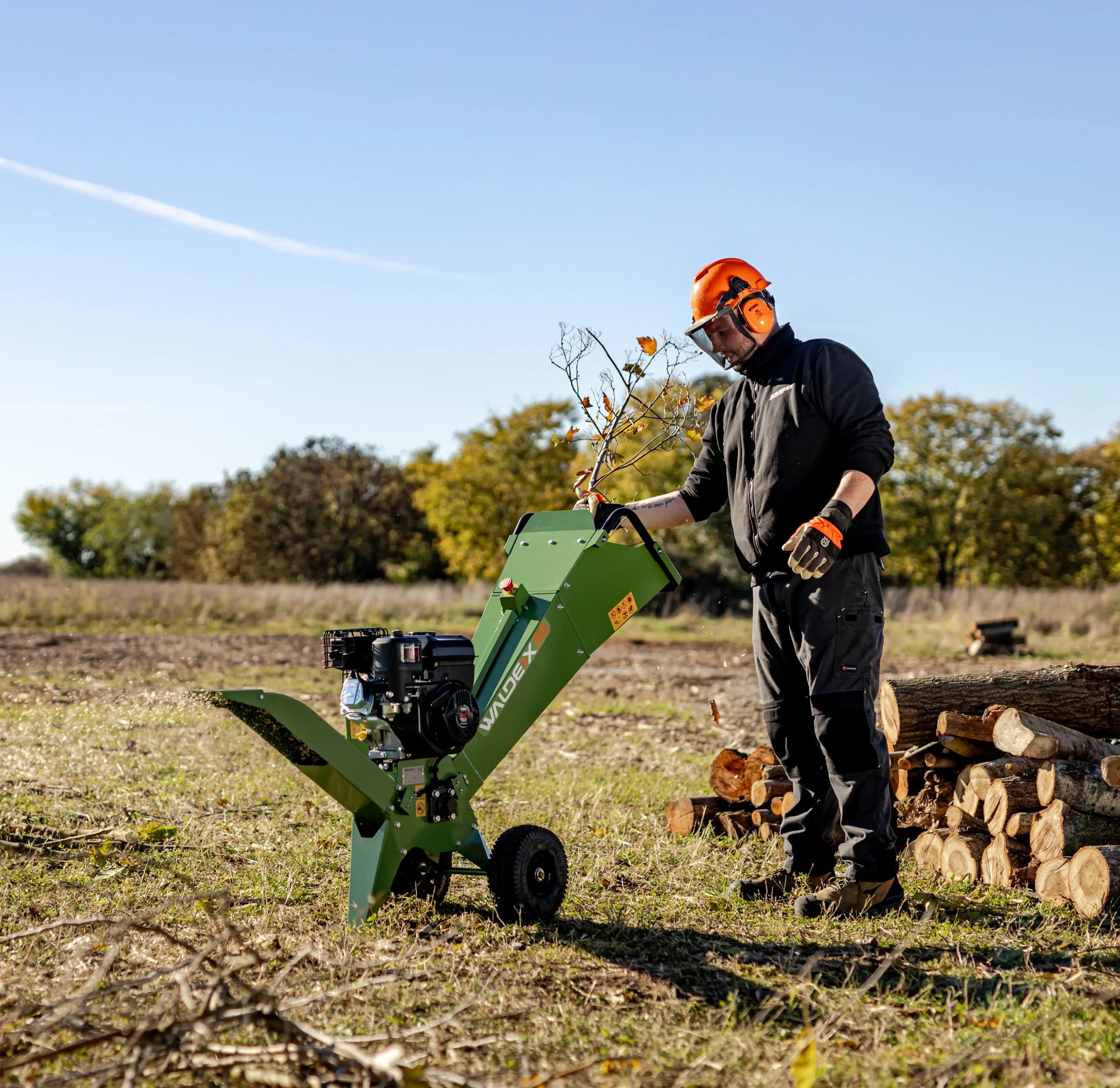

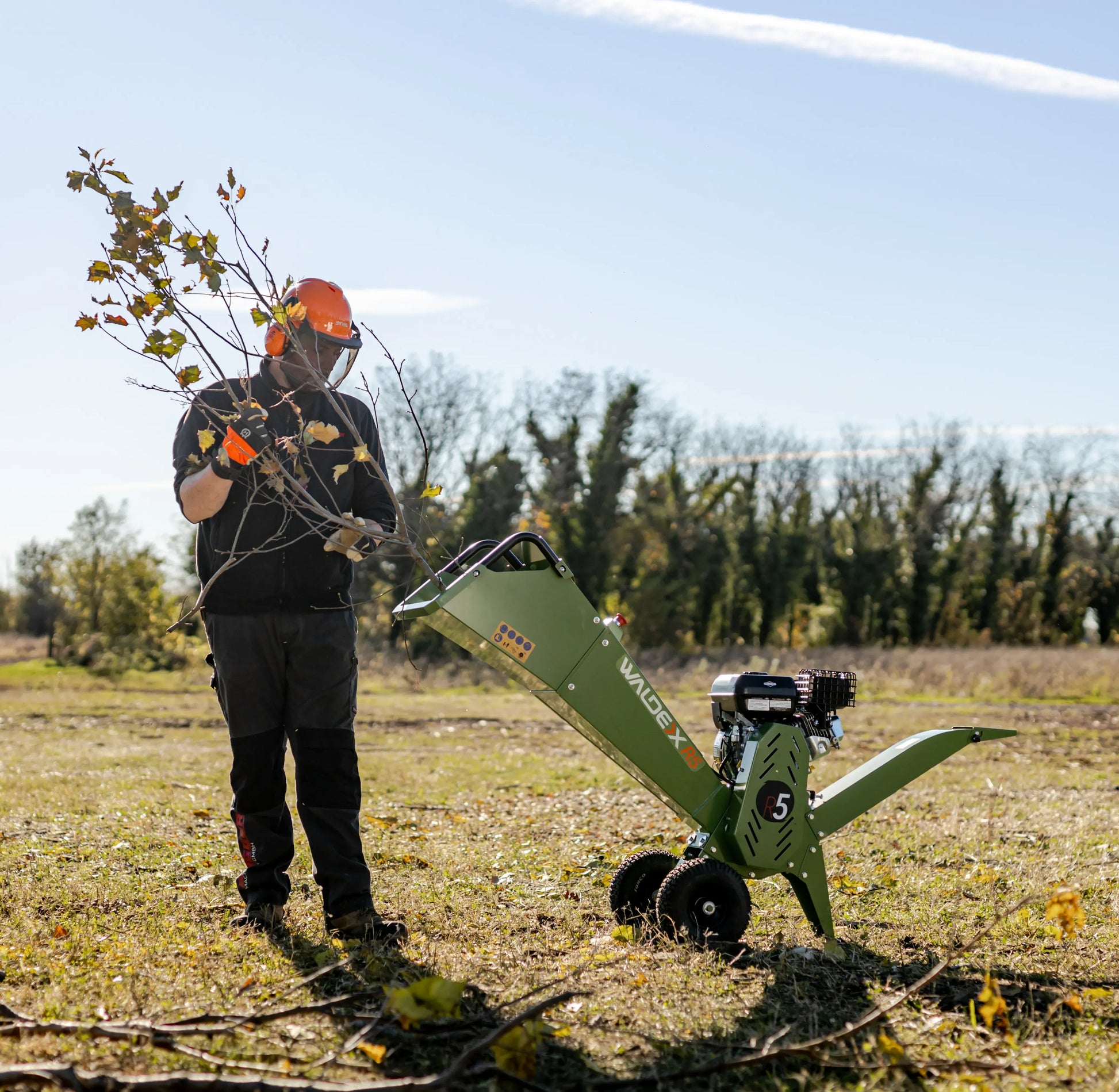

It handles branches, vine material, leafy garden waste, and soft organic materials efficiently, producing fine chips suitable for mulching and composting.

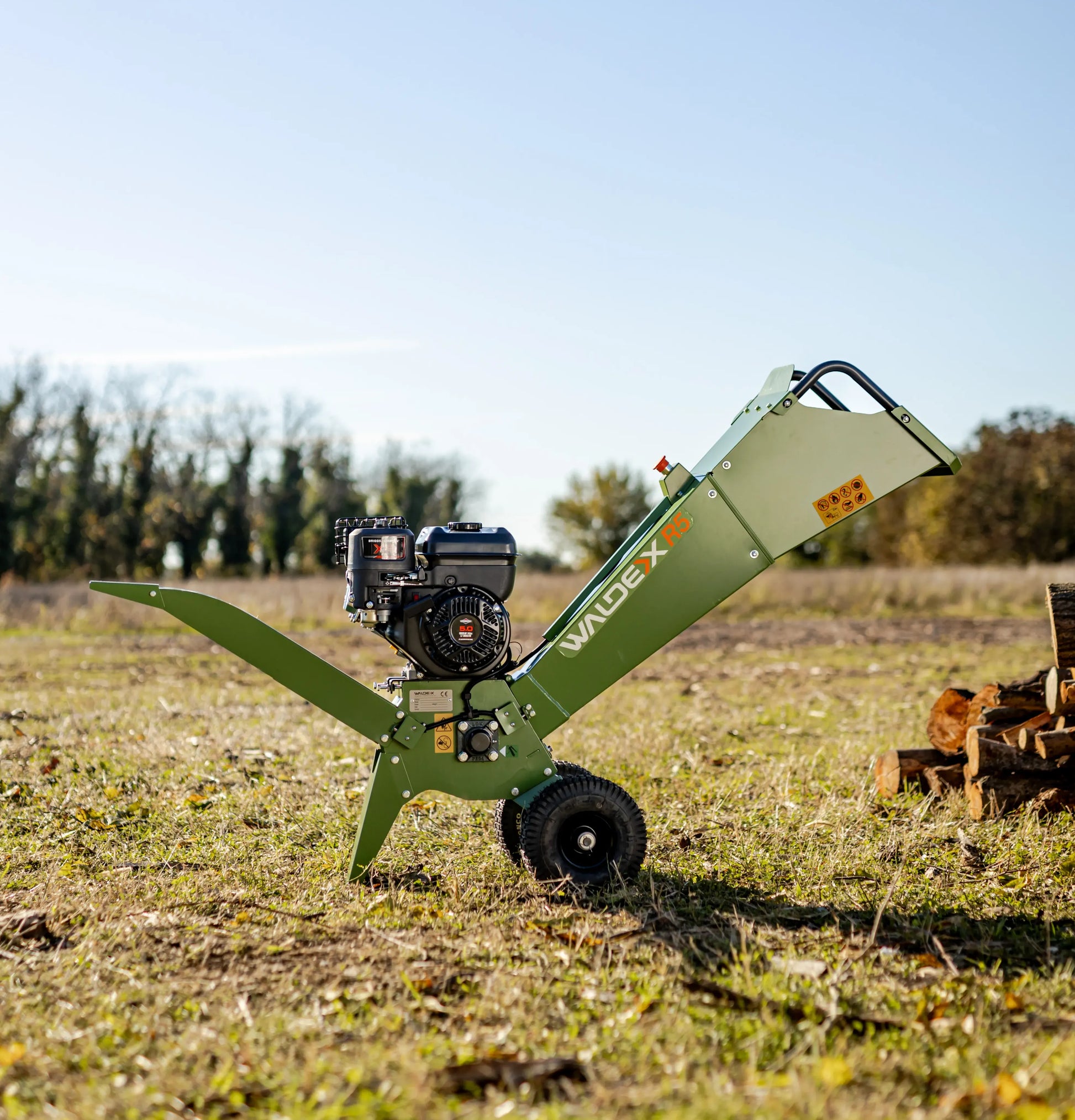

Compact and Practical Design

The compact frame allows easy storage in garages, sheds, and small spaces while maintaining solid stability during operation.

• Hopper size: 395 x 330 mm

• Operating height: 750 mm

• Length: 1600 mm

• Width: 500 mm

• Height: 1050 mm

• Weight: 55 kg

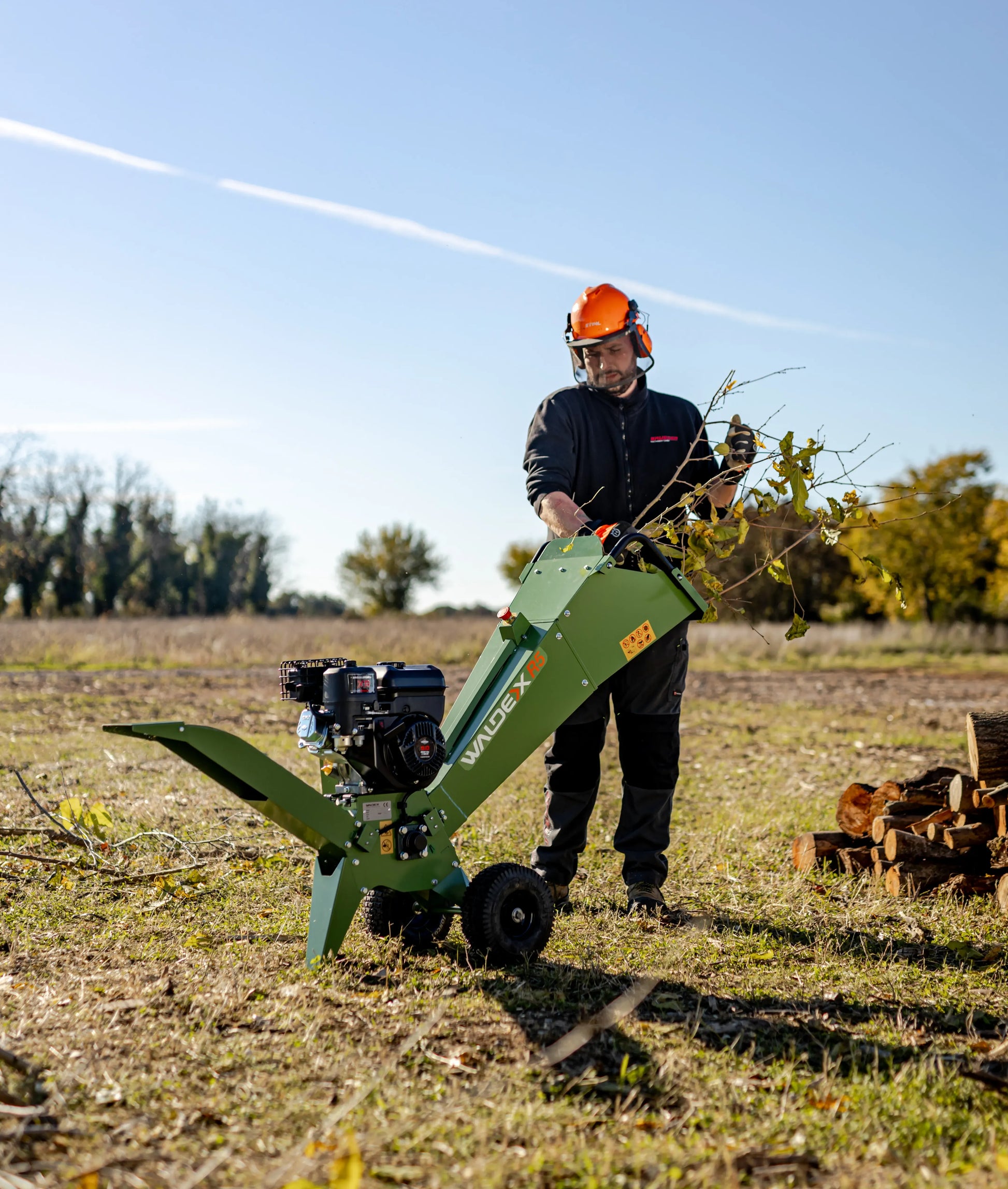

The ergonomic hopper height ensures comfortable and safe feeding of material.

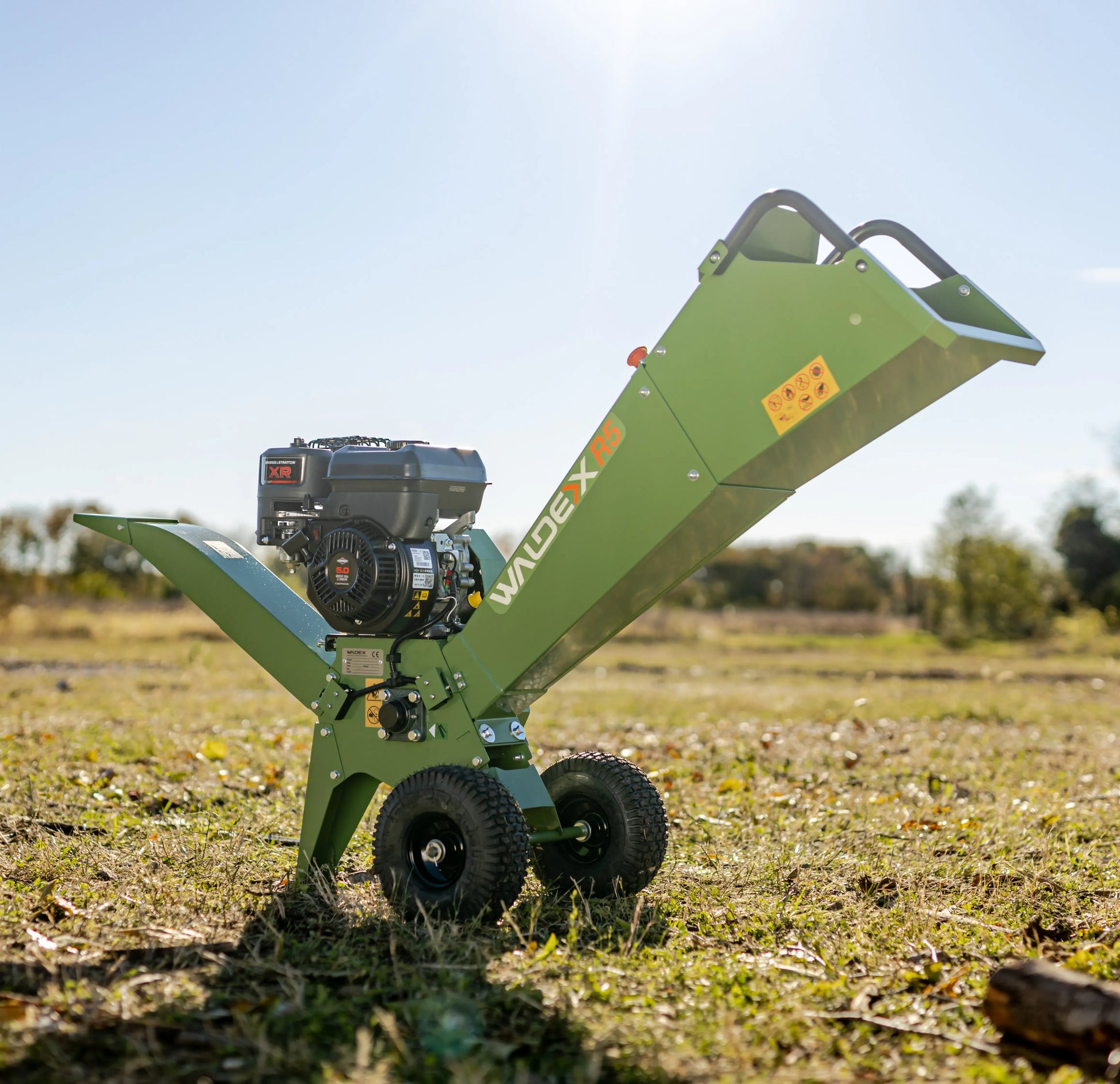

Mobility and Handling

Designed for easy movement across various garden terrains:

• 10 inch solid tyres

• Lightweight construction

• Easy to maneuver and transport

Easy Maintenance

The WALDEX R5 is engineered for simple and accessible maintenance, ensuring long-term reliability and hassle-free operation.

Safe and Efficient Performance

The machine is designed for safe and fast chipping performance, combining efficiency with controlled operation for reliable results.

Technical Specifications

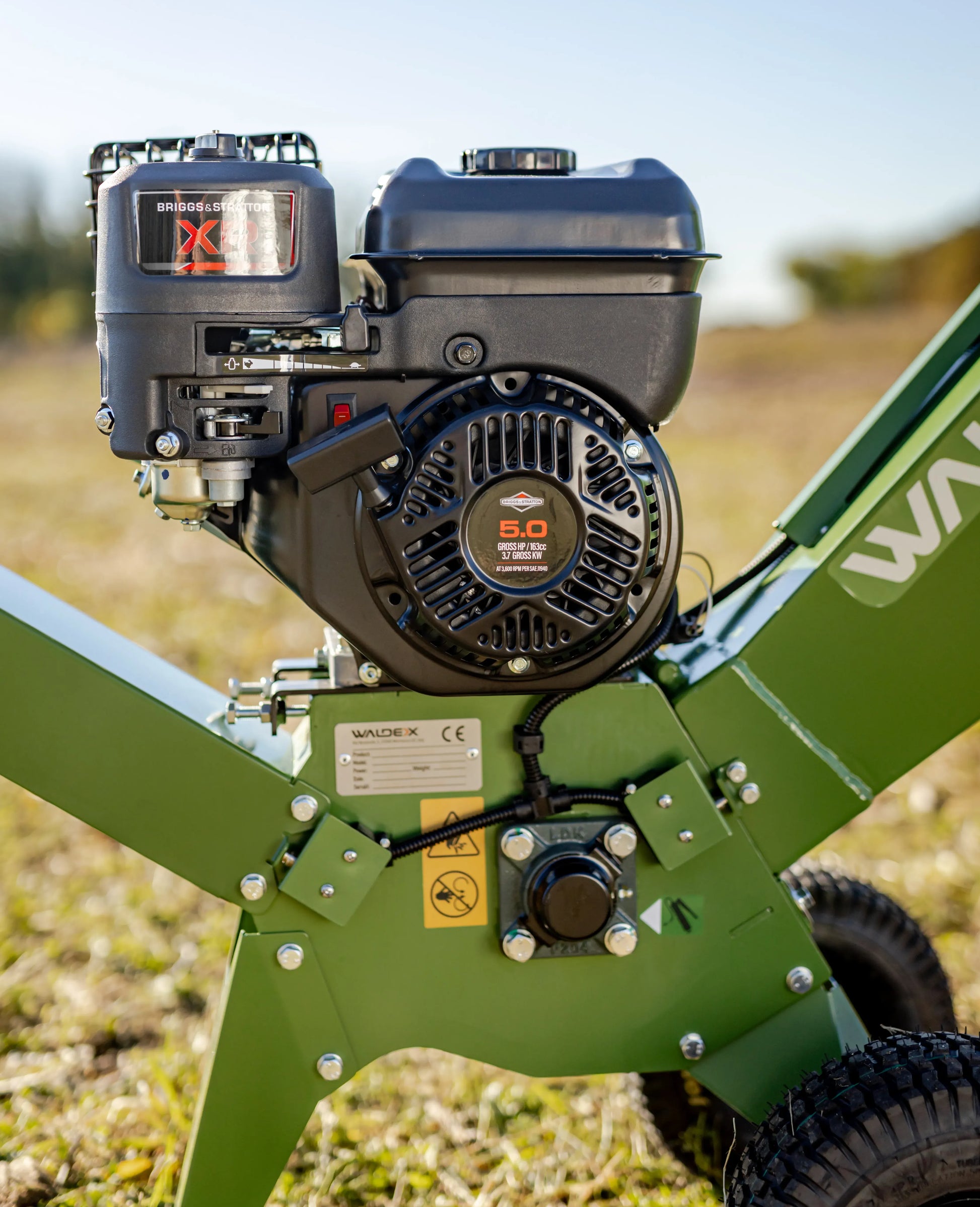

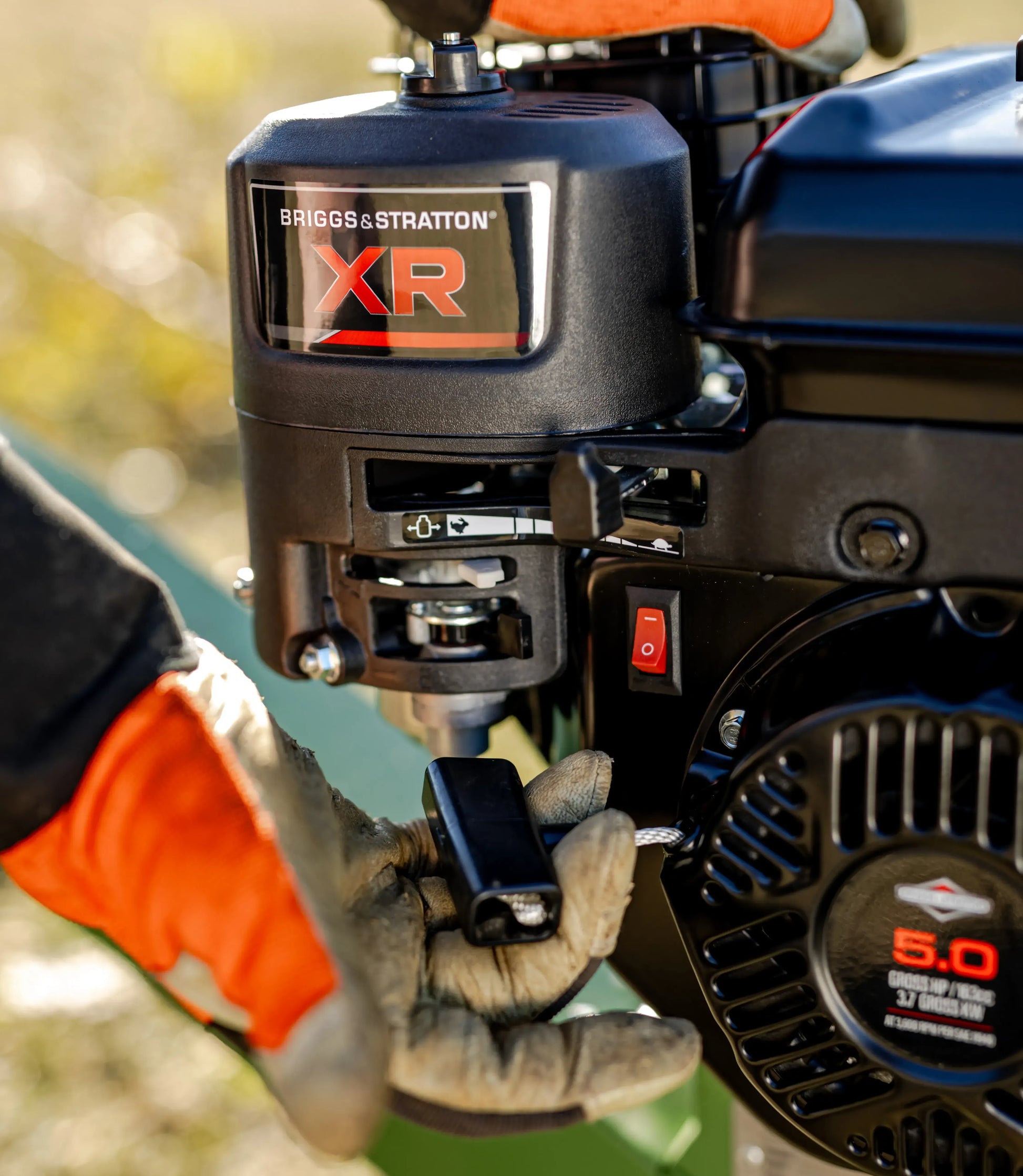

Engine

• Type: Gasoline, single cylinder

• Power output: 4.4 kW (approx. 6 PS) at 3600 rpm

• Fuel tank capacity: 3.6 l

Chipping System

• System: Drum

• Drum width: 105 mm

• Blades: 2 reversible

• Maximum branch diameter: 50 mm

• Output capacity: 2–3 m³ per hour

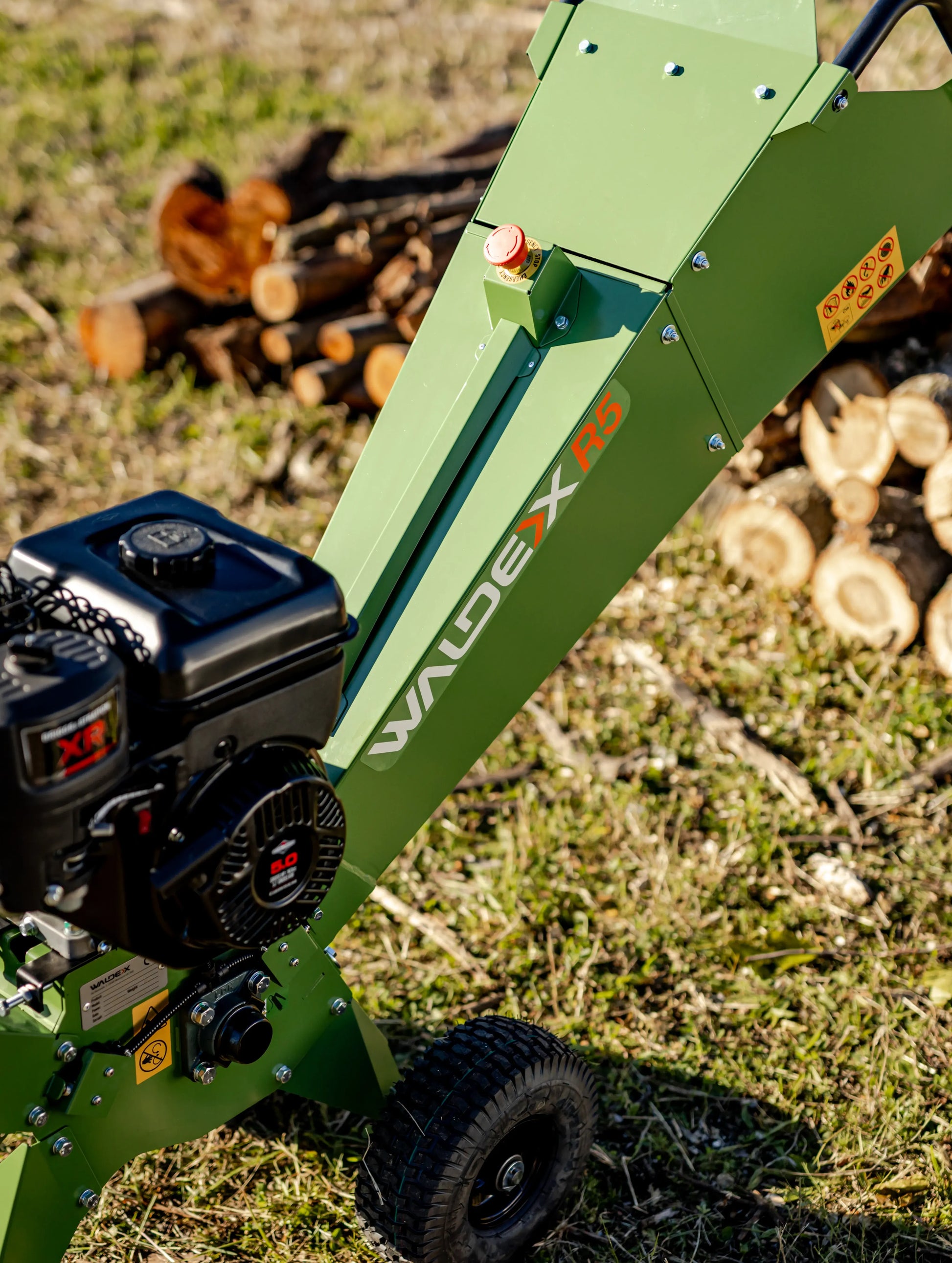

Hopper

• Hopper size: 395 x 330 mm

• Operating height: 750 mm

Dimensions

• Length: 1600 mm

• Width: 500 mm

• Height: 1050 mm

• Weight: 55 kg

Mobility

• Tyres: 10 inch solid tyres

Warranty

3-year limited warranty for domestic use.

The WALDEX R5 combines compact dimensions, efficient drum technology, and reliable engine performance in a lightweight and practical machine for controlled and effective garden waste processing.
