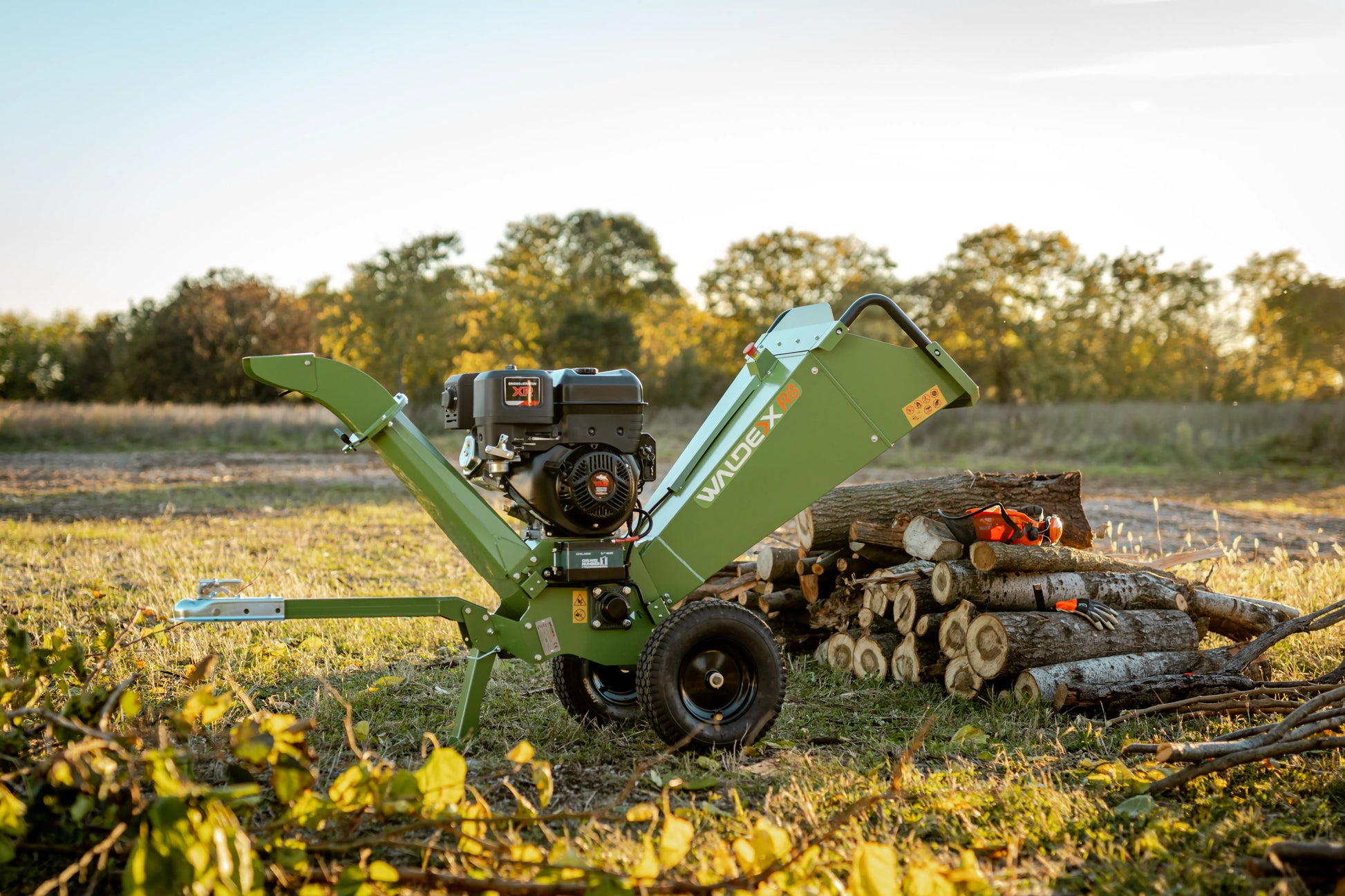

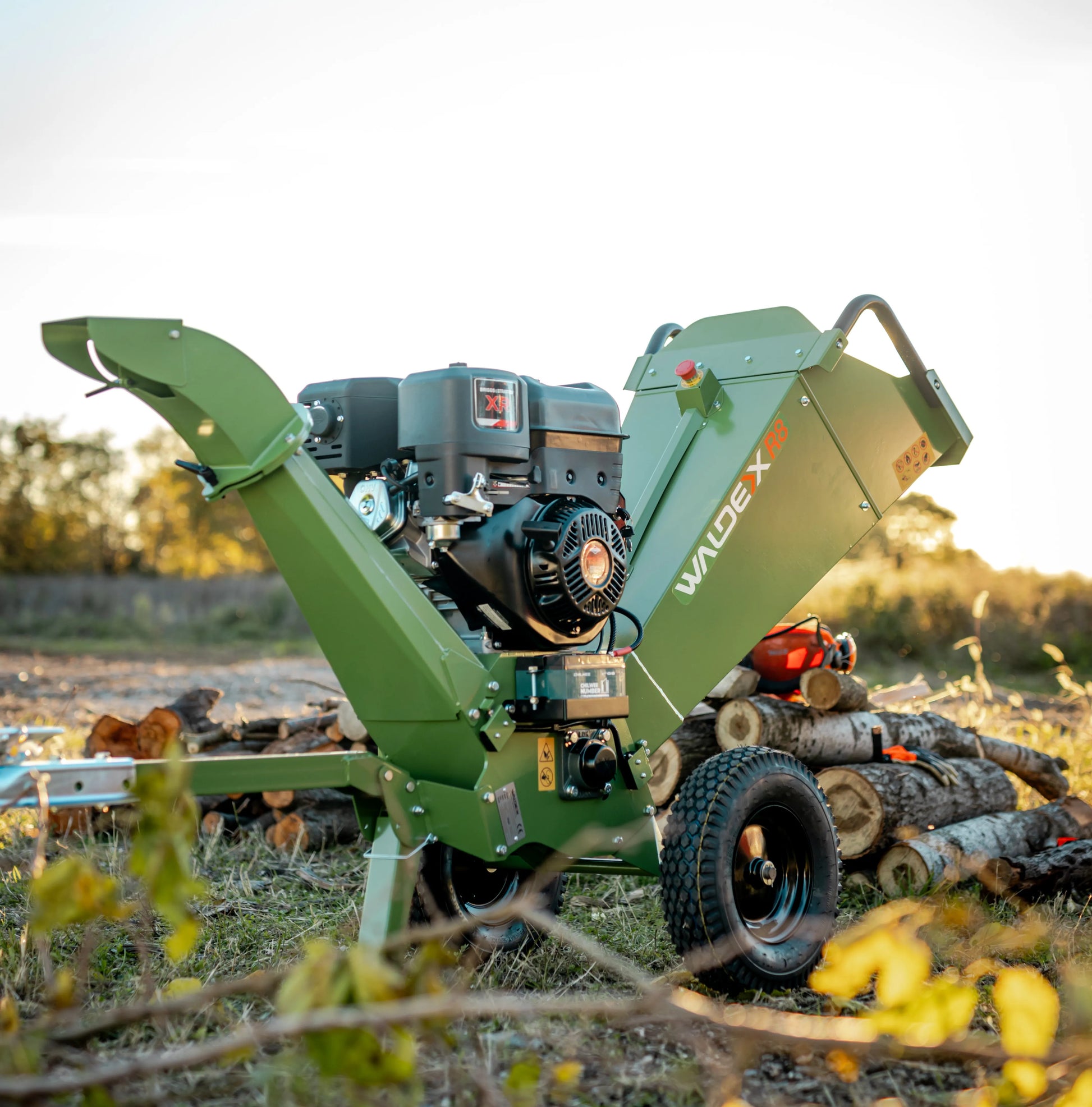

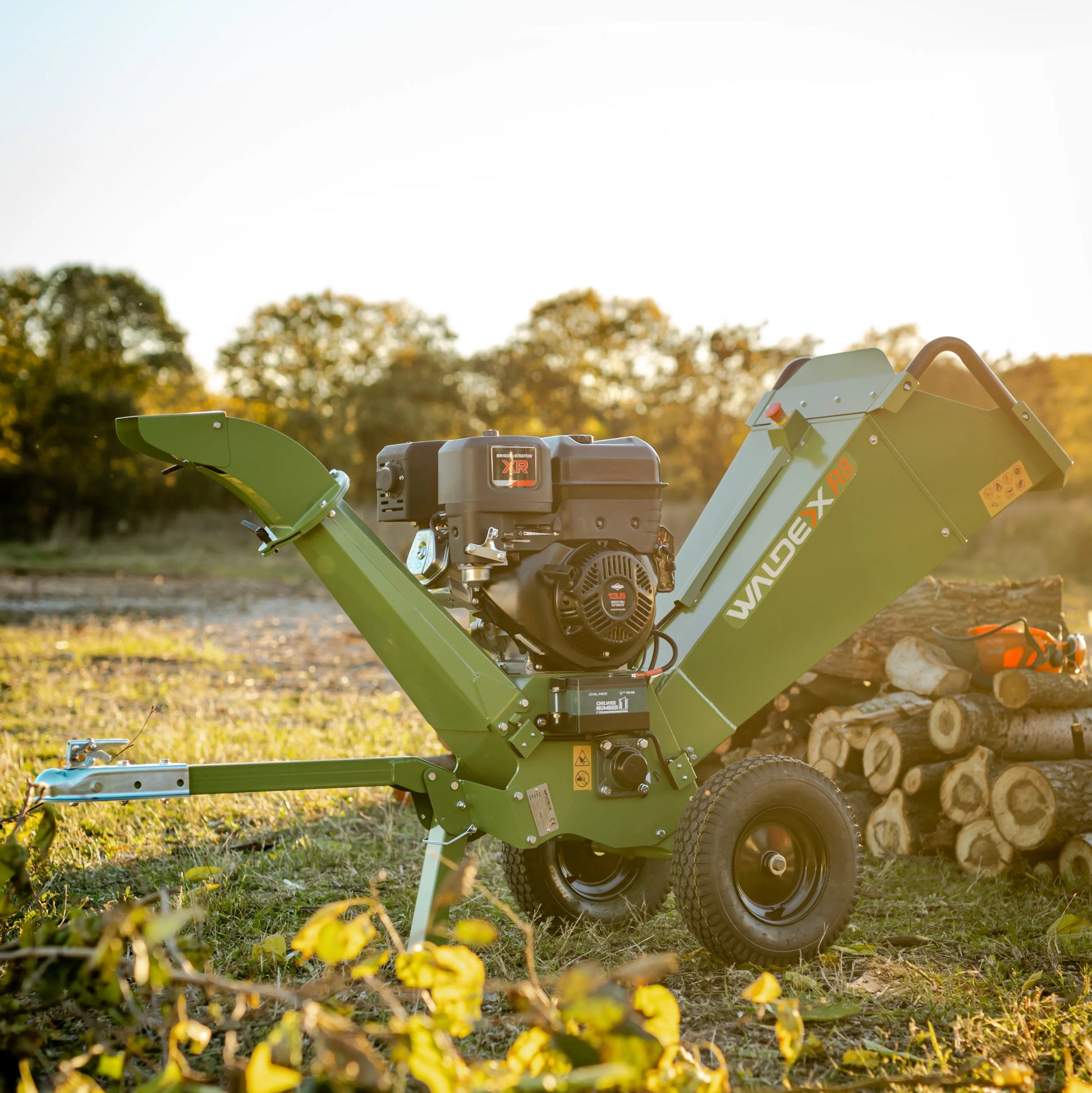

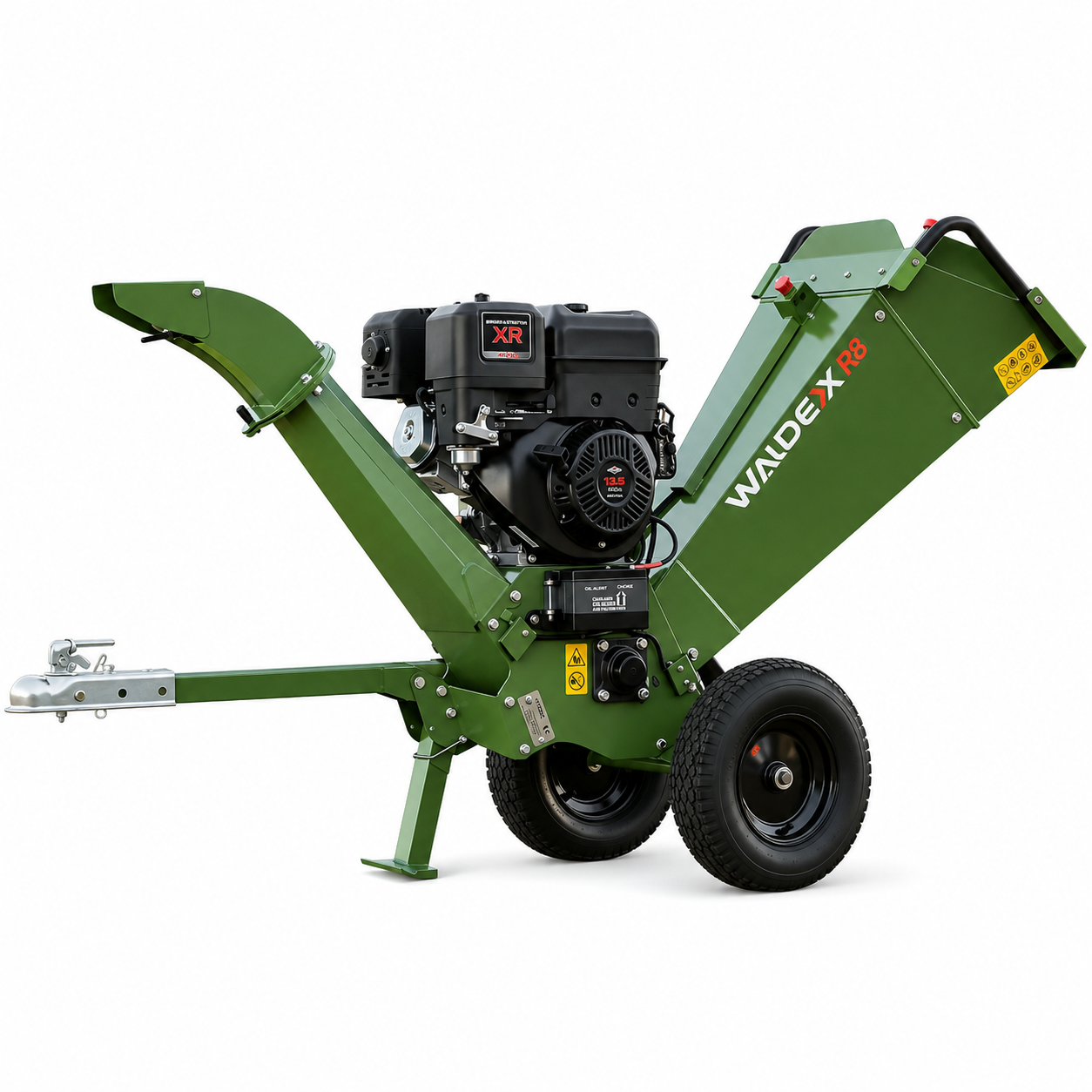

WALDEX R8

Drum Wood Chipper with Briggs & Stratton Engine

Compact. Powerful. Reliable.

The WALDEX R8 is a robust drum wood chipper designed for efficient shredding of branches and green waste. Equipped with a powerful Briggs & Stratton gasoline engine with 420 cc displacement, the machine delivers 14HP at 3600 rpm.

With a maximum branch diameter of 80 mm and an output capacity of 3–5 m³ per hour, the WALDEX R8 offers high productivity combined with a compact design.

Efficient Drum Chipping System

At the core of the machine is a heavy-duty drum with a working width of 210 mm.

• 2 reversible hardened steel blades

• High cutting performance

• Long blade service life

• Smooth material intake

• Jam-free operation

Even branched, fibrous, or leafy materials are processed reliably without blockages.

Ergonomic Design

The generously sized hopper measuring 520 x 475 mm allows comfortable operation.

• Hopper height: 920 mm

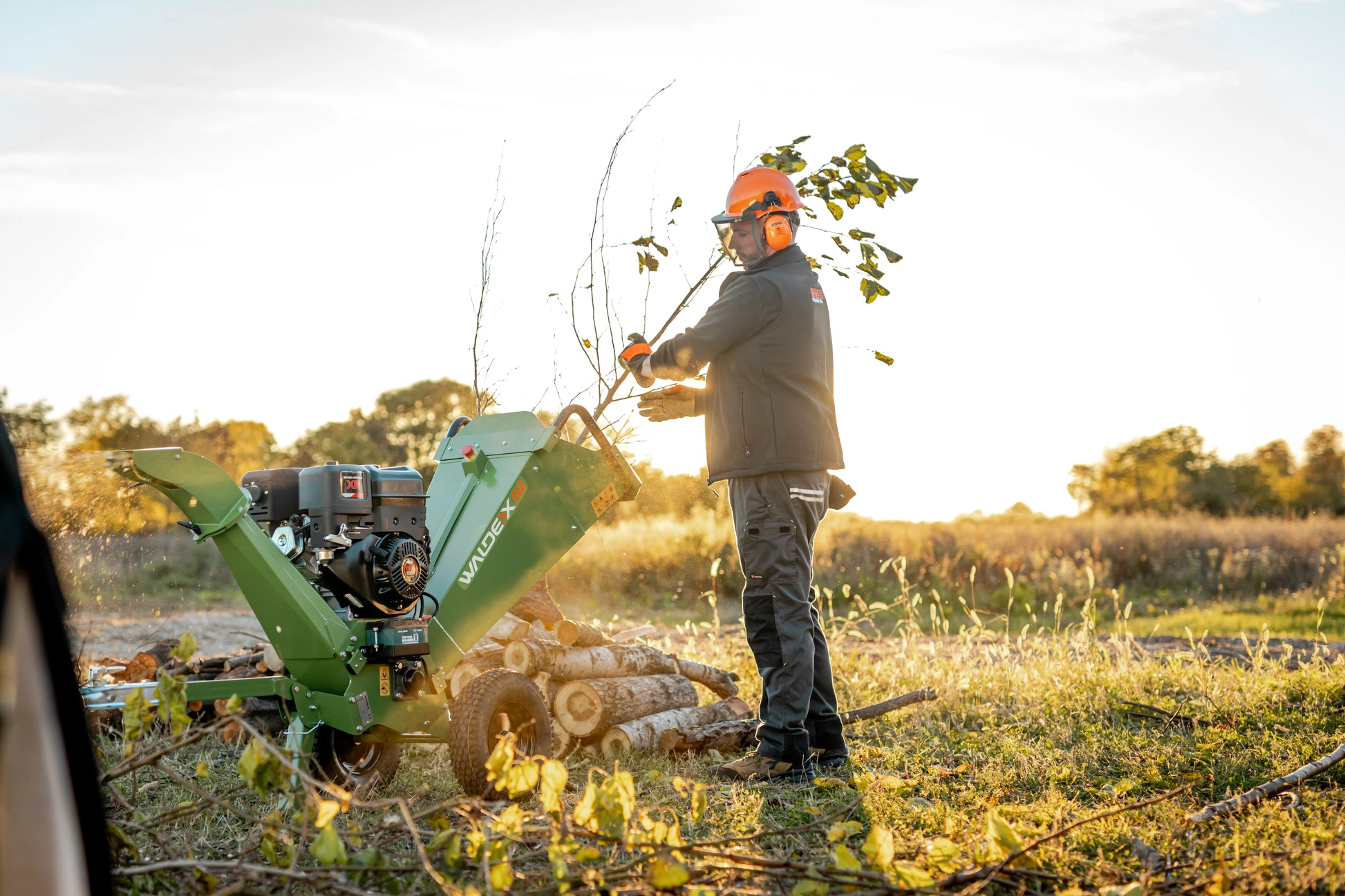

• Safe and ergonomic feeding

• Stable and compact construction

The compact overall dimensions of 2125 mm length, 695 mm width, and 1200 mm height allow easy maneuvering even in confined spaces.

The total weight of 150 kg ensures stable positioning during operation.

Mobility and Transport

The WALDEX R8 is designed for flexible use:

• Tyres: 16 inch, 4.5-8

• 360 degree turnable chassis

• Optional ATV tow bar

• Suitable for towing behind all-terrain vehicles

Ideal for larger properties and varying terrain conditions.

Technical Specifications

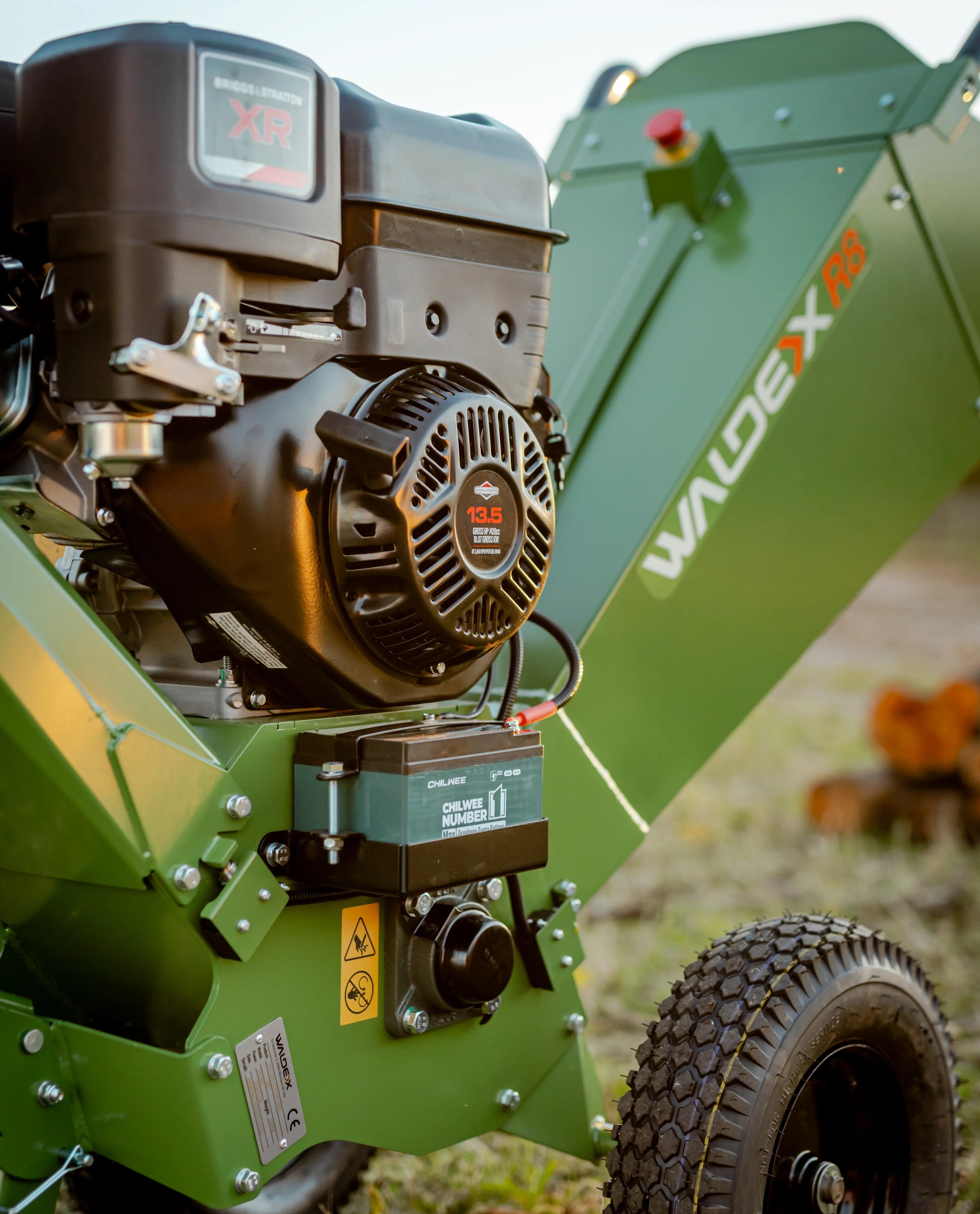

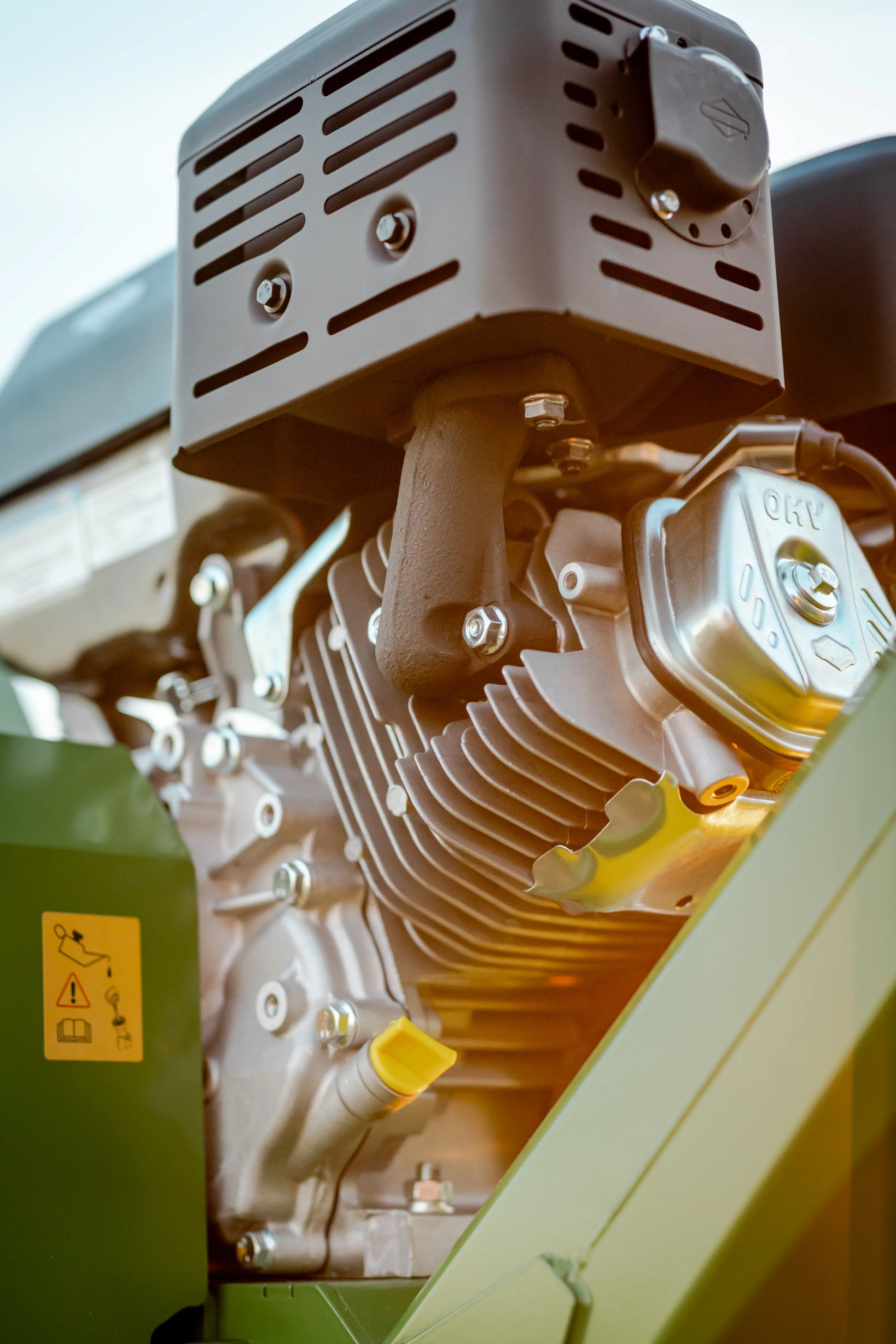

Engine

• Manufacturer: Briggs & Stratton

• Type: Gasoline, single cylinder

• Displacement: 420 cc

• Power: 8.8 kW (approx. 12 PS) at 3600 rpm

• Fuel tank capacity: 6.5 l

• Starting system: Recoil start, electric start optional

Chipping System

• System: Drum

• Drum width: 210 mm

• Blades: 2 reversible

• Maximum branch diameter: 80 mm

• Output capacity: 3–5 m³ per hour

Dimensions

• Length: 2125 mm

• Width: 695 mm

• Height: 1200 mm

• Weight: 150 kg

Chassis

• Tyres: 16 inch, 4.5-8

• 360 degree turnable

• ATV towable optional

Warranty

3-year limited warranty for domestic use.

The WALDEX R8 combines proven engine technology, an efficient drum system, and a well-engineered construction in a compact machine designed for efficient and reliable performance.
